Black 5 Steam Locomotive  British Railways 45025

LMS locomotive 5025 Stanier Black Five Class 5MT 4-6-0

Heritage & Preserved Steam Locomotive Engines

My Archive Steam Photos from the 1960s

'Black 5', LMS 5025, BR 45025 black 5, built Vulcan Foundry Works in 1934

The Stanier 4-6-0 'Black Fives' designed for passenger trains and express freight trains (mixed traffic 5MT rating).

Technical detail specifications of steam locomotive 45025/5025:

Boiler pressure of 45025/5025: 225 lbf/sq.in.

Weight of 45025/5025: loco 72.1 tons, tender 53.7 tons

Wheel diameter of 45025/5025: 3' 3½'', 6' 0"

Valve gear of 45025/5025: Walschaerts piston valves

Cylinders (diameter x stroke) of 45025/5025: 18½" x 28" (O)

Tractive effort of 45025/5025: 25450 lbf., BR Power classification of 45025/5025: Class 5MT

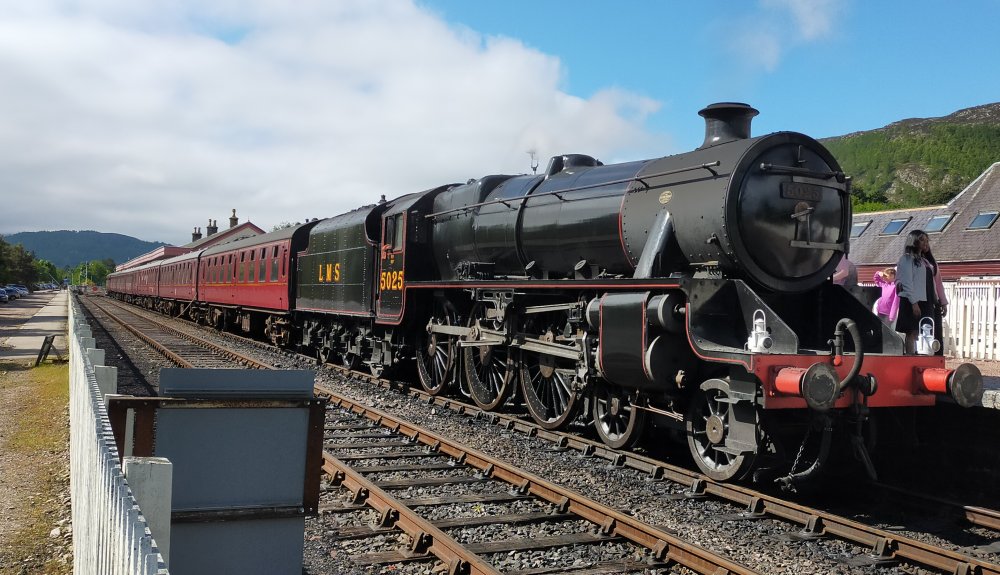

Steam locomotive BR 45025, running as LMS 5025 on the Strathspey Railway in June 2022 (photo courtesy of Kentish Bob YouTube https://www.youtube.com/@kentishbob6423 )

History of Stanier Black Five 4-6-0 steam locomotive BR 45025, LMS 5025

The Stanier Black Five locomotives like 45025/5025 were a class of 4-6-0 steam locomotives designed by William Stanier for the London, Midland and Scottish Railway (LMS). 842 were built between 1934 and 1951. These locomotives were known for their versatility, earning the nickname "Black Five" due to their power classification and black livery.

Regarding BR 45025 (formerly LMS 5025), this locomotive was part of the Black Five series and was renumbered under British Railways (BR) after nationalization. It is currently undergoing restoration at Ian Riley & Sons in Bury. Many Black Fives like 45025/5025 survived until the end of steam on British Railways in 1968, and 18 including 45025/5025 have been preserved.

BR 44767 GEORGE STEPHENSON Locomotive LMS/BR Stanier Black Five

BR 44806 Steam Locomotive LMS/BR Stanier Black Five

BR 44871 SOVEREIGN Locomotive LMS/BR Stanier Black Five

BR 44932 Steam Locomotive LMS/BR Stanier Black Five

BR 45000 LMS 5000 Locomotive LMS/BR Stanier Black Five

BR 45110 RAF BIGGIN HILL Locomotive LMS/BR Stanier Black Five

BR 45212 ROY 'CORKY' BROWN Locomotive LMS/BR Stanier Black Five

BR 45231 THE SHERWOOD FORESTER Locomotive LMS/BR Stanier Black Five

BR 45305 Locomotive LMS/BR Stanier Black Five

BR 45407 Locomotive THE LANCASHIRE FUSILIER  LMS/BR Stanier Black Five

BR 45428 ERIC TREACY Locomotive LMS/BR Stanier Black Five

BR 45491 Locomotive LMS 5491 Stanier Black Five

Some archive photos of Stanier Black Fives

Profile shot of a Stanier Black Five 4-6-0 steam locomotive

A Black Five in coal freight train action in 1967 near Wigan in the last days of steam!

*

A very grubby 'Black Five' steam locomotive, but still working in 1966 !!!

Those were the days at near Winwick Junction near Warrington, when you got a friendly wave from a Black Five engine driver!

Black 5 leaving Wigan, passing Springs Branch engine shed (in the distance) with a train for Manchester (pictured in January 1967)

Stanier Black Five 4-6-0 locomotive hauling a special excursion train 1T57 north of Rainhill on the Liverpool-Manchester railway line pictured in August 1968
