Class 153 Leyland Super Sprinter DMUs DMSL

Leyland Bus Diesel Multiple  units, often run as a single car DMU, Class 153 DMU cars were built 1987-1988 at Workington and converted by Leyland Bus from Class 155 2-car units.

A history of the Class 153 DMUs

Class 153 DMU units have a maximum speed of 75 mph. Class 153 DMUs started off as two-car units, but most were converted to single-car units in the 1990s by Hunslet-Barclay, but the 2nd driving cab is pretty cramped! Class 153 DMUs can also operate in 3-car units.

The idea was to operate the smallest possible trains on rural branch lines that couldn't justify longer passenger trains.

Contemporary and Heritage-Preserved, Diesel, Diesel-Electric and Electric Locomotives

Trainspot locations  *  TOPS class links  *  My Main Railways Index

Nostalgic Steam Train Photos from the 1960s  * Email: chem55555@hotmail.com

[Author and photographer © Dr WP Brown PhD (plus 'DocsPics' help from AI these days), page updated May 9th 2026]

* *

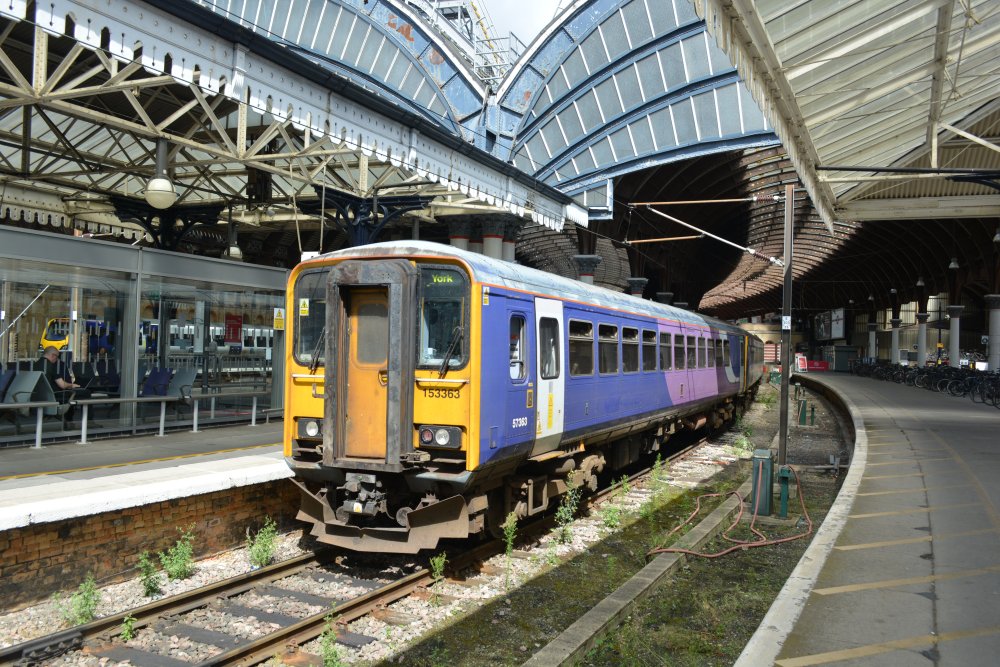

Class 153/3 DMU Class 153 unit 153363 at York Station with a Northern Rail Service to Hull (August 2021)

TOP of PAGE

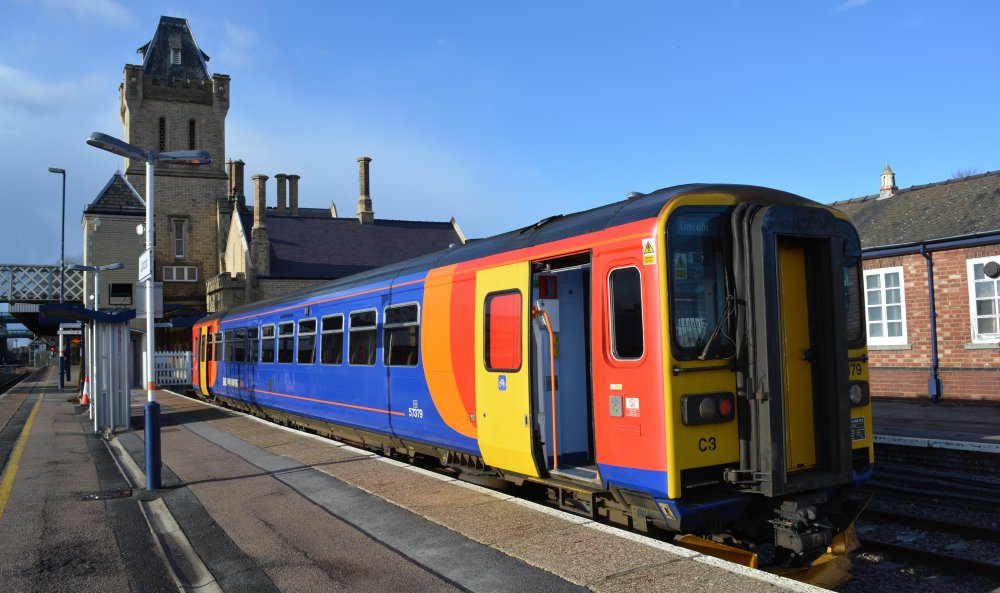

East Midlands Class 153 DMU unit 153379 at Lincoln Central station (Feb 2nd 2018)

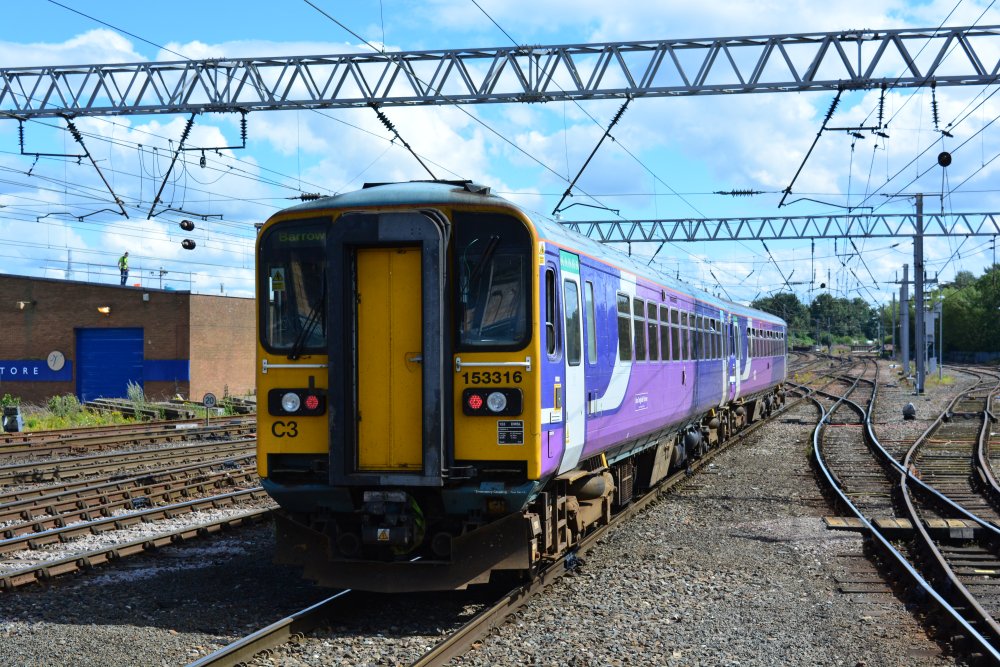

2-car Class 153 unit 153316 Aug 1st 2017 entering Carlisle station from Barrow

TOP of PAGE

On the left, Class 153 single car unit 153302 at Lincoln Central station with a train for Doncaster (Feb 2nd 2018)

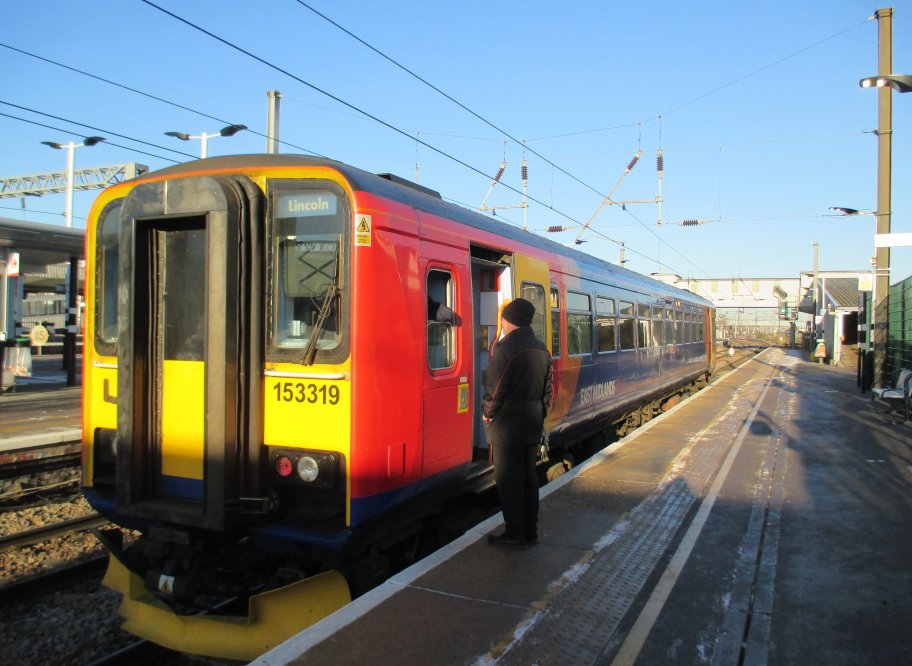

Single car Class 153 DMU 153319 at Peterborough station with an East Midlands service to Lincoln.

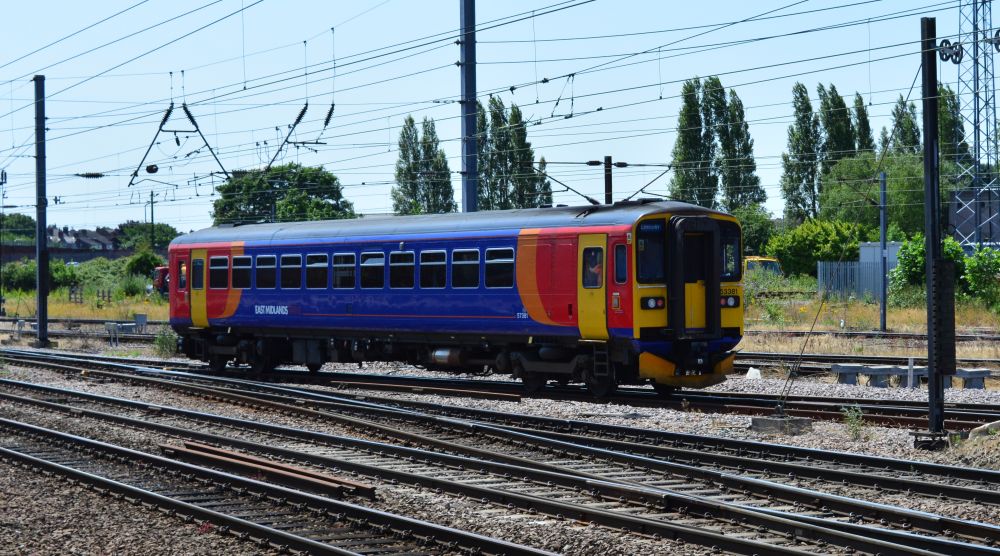

Single car Class 158 DMU 153381 leaving Doncaster with an East Midlands service to Lincoln.

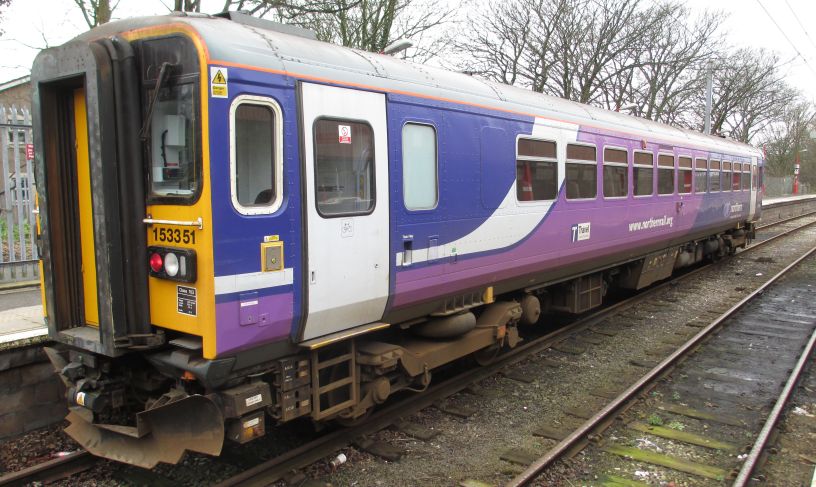

Northern Rail single car unit Class 153 153351 in Lancaster station

TOP of PAGE

East Midlands Class 153 single-car DMU 153376 at Barnetby Station with a train from Newark North Gate to Cleethorpes

East Midlands Class 153 single-car DMU 153376 entering Barnetby Station with a train service from Cleethorpes to Newark North Gate.

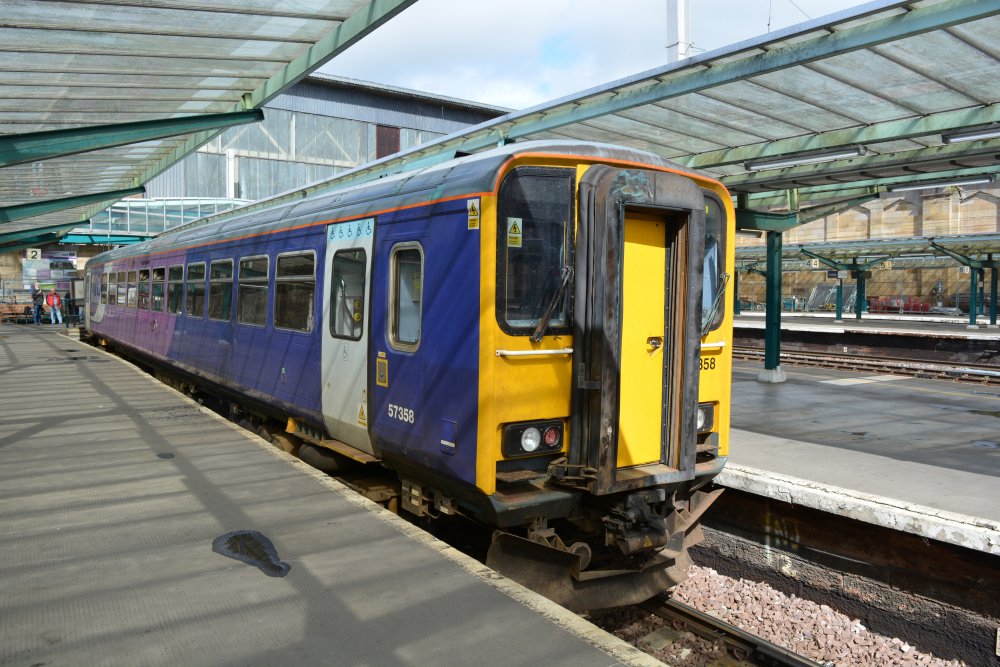

Single car DMU unit Class 153 153358 (carriage no. 57358) at Carlisle station with a Northern Rail service to Millom (31/08/2016)

TOP of PAGE

East Midlands Class 153 311 (single car DMU 153311) at Doncaster Station.

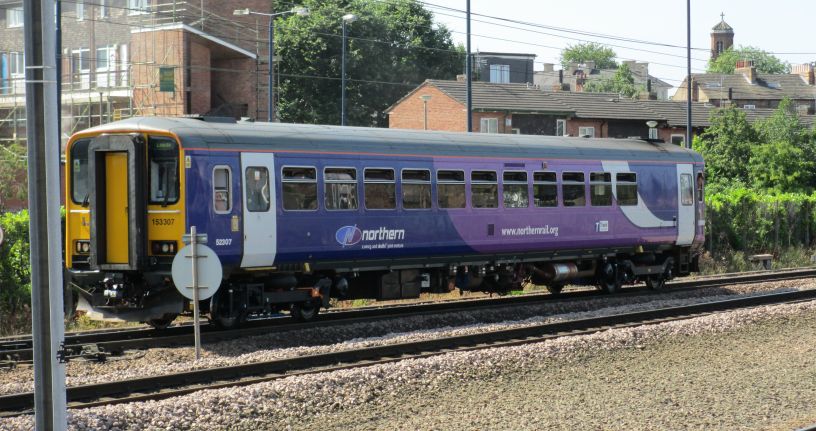

Northern Rail Class 153 Super Sprinter 307 (DMU 153307, carriage number 52307) seemed to be working as single carriage unit leaving York Station.

Northern rail DMU single carriage Class 153 307 153307 (carriage no. 52307) at York Station

East Midlands single-car Class 153 DMU 153383 leaving Barnetby station with a Newark North Gate to Cleethorpes service.

Single carriage (1-car) Super Sprinter Class 153 363 (DMU 153363, carriage number 57363) at Sheffield Station

Northern rail single car unit Class 153 317 (DMU no. 15317, carriage no. 52317) leaving Wakefield Westgate station

East Midlands liveried Class 153 DMU 153383 standing in Barnetby station

London Midland operated single car Super Sprinter Class 153 366 (DMU 153366) at Nuneaton station operating the London Midland City Nuneaton-Coventry shuttle service.

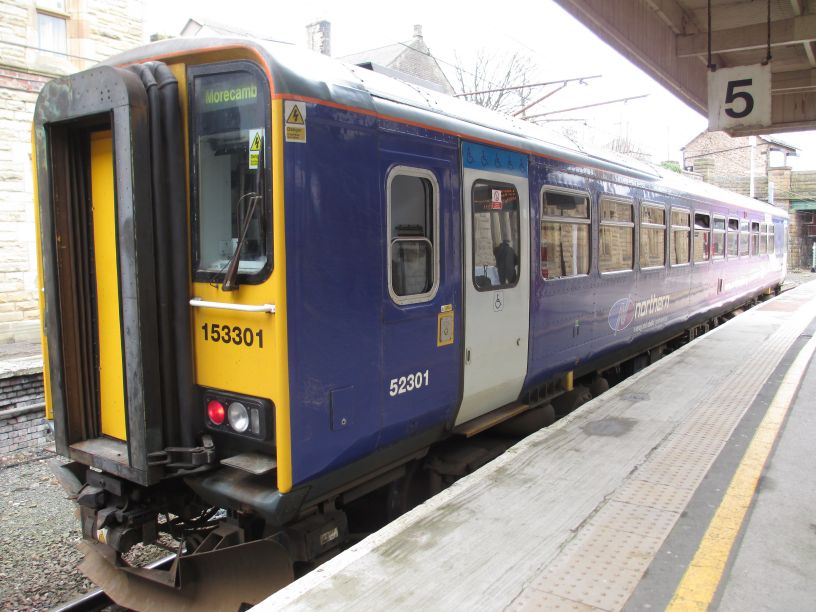

Northern Rail Class 153 DMU unit 153301 at Lancaster station

Northern Rail 3-car unit headed by Class 153 unit 153307 at Lancaster station with a service to Carlisle.

TOP of PAGE

Class 153 DMU 153353 operated by Arriva trains at Crewe station

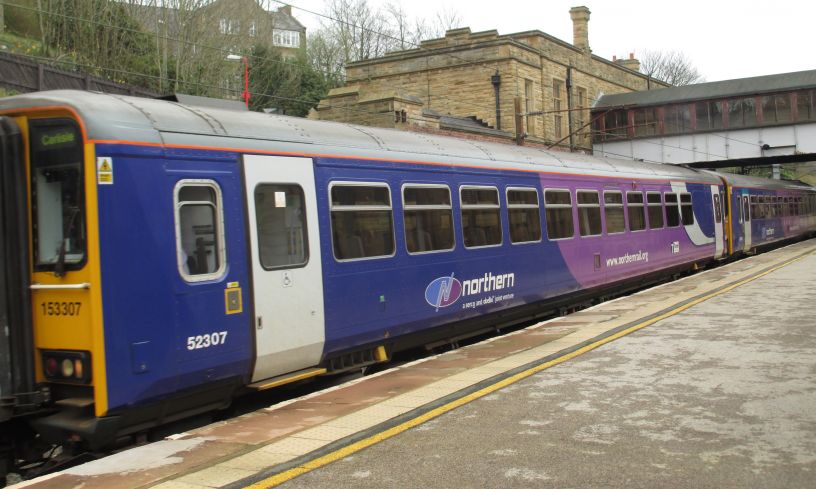

DMU Class 153 153307 at Carlisle station with the train for Barrow-in-Furness

A Class 153 single car DMU unit 153302 with an East Midlands service from Peterborough to Lincoln (Peterborough station, 29/11/16)

Class 153 DMU unit 153310 at Peterborough (29/11/16)

TOP of PAGE

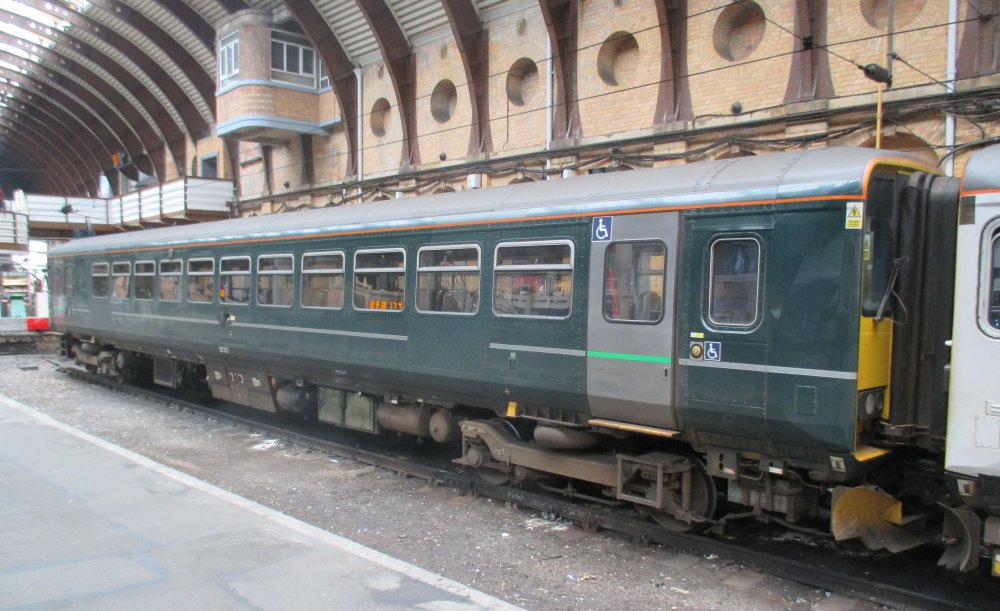

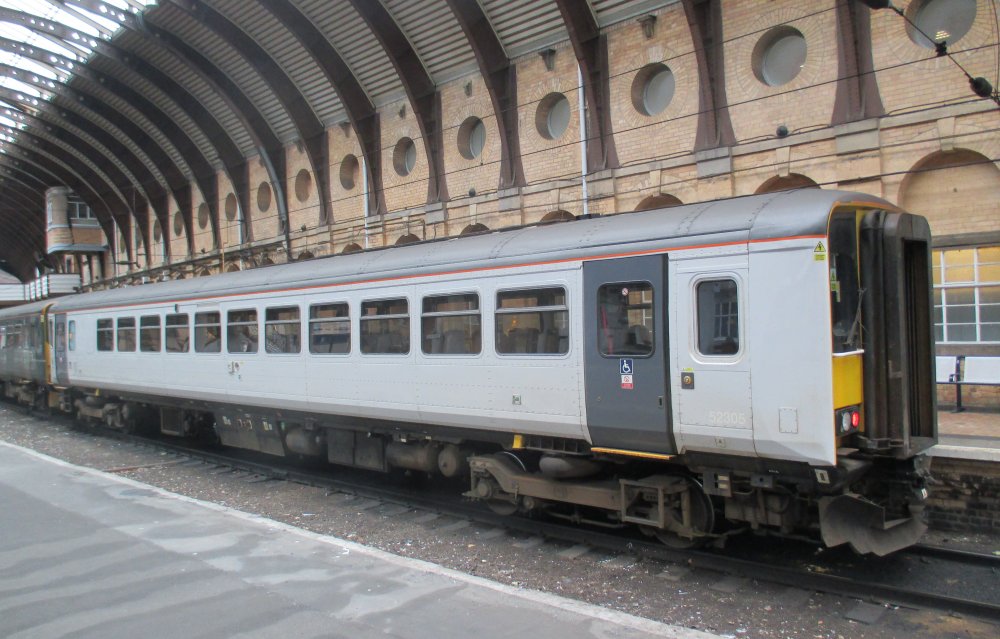

Class 153 EMU unit 153377 in York Station (date?, transferred from? not converted to Northern Rail livery yet)

153305 in York Station (date?, transferred from? not in Northern Rail livery yet)

TOP of PAGE

A history of Class 153 EMUs

The Class 153 “Super Sprinter” units are single‑car diesel‑hydraulic DMUs created in 1991–92 by converting two‑car Class 155 sets. They were designed to replace ageing first‑generation railcars on lightly used rural routes, and they went on to become one of the most flexible and widely deployed small DMUs in Britain.
The following is a complete, structured history grounded in authoritative sources.

Origins and Purpose of the Class 153 DMUs

By the late 1980s, British Rail needed a modern, economical replacement for elderly single‑car units such as the Class 121 and Class 122. Rather than ordering new stock, BR chose a cost‑effective solution: convert existing Class 155 two‑car units into single‑car railcars.

• 35 Class 155 sets had been built by Leyland Bus at Workington between 1987–1989 to modernise regional services.

• These units were withdrawn for conversion beginning in 1991.

The goal was to create a versatile “bubble car” capable of operating economically on rural lines while also being compatible with the wider Sprinter fleet.

Conversion and Construction of the Class 153 DMUs (1991–1992)

• Conversion facility: Hunslet‑Barclay, Kilmarnock

• Years converted: 1991–1992

• Number created: 70 single‑car units

• New numbering:

  • Former DMSL(A) cars → 153301–153335

  • Former DMSL(B) cars → 153351–153385

What the conversion involved

• Fitting a new cab at the inner end of each former Class 155 coach

• Installing new headlight clusters and cab controls

• Retaining the original Cummins NT855‑R5 engine and Voith T211r hydraulic transmission

• Adding BSI automatic couplers and wiring for multiple‑working with other Sprinter‑family DMUs

The new cab was smaller than the original, giving the Class 153 its distinctive asymmetrical appearance.

Technical Characteristics

• Power: 1 × Cummins NT855‑R5 diesel engine, 213 kW (285 hp)

• Transmission: Voith T211r hydraulic

• Max speed: 75 mph (121 km/h)

• Carbody: Steel monocoque (from original Class 155)

• Length: ~23 m

• Doors: Single‑leaf sliding plug doors (2 per side)

• Couplers: BSI; compatible with Classes 14x, 15x, 170, 172 etc.

• Seating:

  • Pre‑PRM: 66–75 seats

  • Post‑PRM refurb: 59 seats

Entry Into Service of the Class 153 DMUs (1991–1992)

The Class 153s entered service immediately after conversion, replacing first‑generation DMUs on rural and lightly used routes across:

• The Midlands

• Wales

• Northern England

• Scotland

They quickly proved popular due to their flexibility, low operating cost, and ability to work in multiple with other Sprinter units.

Operational History of the Class 153 DMUs

Early BR and Regional Railways era

Used widely on rural lines such as:

• Heart of Wales Line

• West Midlands branches

• East Midlands rural routes

• Cornish branch lines

Post‑privatisation operators

Class 153s have served with:

• Central Trains

• Wales & West

• Arriva Trains Wales

• East Midlands Trains / EMR

• Great Western Railway

• ScotRail

• Northern / Northern Trains

• Transport for Wales

• Anglia operators (briefly)

Specialised uses

• Capacity boosters on busy services when coupled to 150/156/158 units

• Stourbridge Town branch (one of the shortest lines in Britain)

• Cardiff Bay shuttle

• Network Rail infrastructure monitoring units (3 units)

Refurbishment and PRM Upgrades of the Class 153 DMUs

From the 2010s onward, Class 153s underwent PRM‑TSI accessibility upgrades:

• Universal access toilets

• Wheelchair spaces

• Wi‑Fi and charging points

• Bicycle storage (notably TfW “Active Travel” conversions completed by 2025)

Withdrawal and Current Status of the Class 153 DMUs (as of 2025)

• Around 40 units withdrawn since the early 2010s

• 12 units scrapped

• ~30 units remain in service or departmental use

  • ~20 with Transport for Wales

  • 5 with ScotRail

  • Several with Network Rail for inspection duties

Preservation

A small number are preserved on heritage railways such as the Great Central Railway, where they are used for driver training.

Significance of the Class 153 DMUs

The Class 153 is historically important because it:

• Represents a cost‑effective BR conversion strategy rather than new‑build procurement

• Provided a modern replacement for first‑generation railcars

• Became one of the most flexible DMUs in the UK, able to operate alone or with almost any Sprinter

• Remains in service more than 30 years after conversion

• Continues to support rural mobility and infrastructure monitoring
