powered from 3rd rail 750V D.C. power supply A History of Type 71 Electric locomotives Contemporary and Heritage-Preserved, Diesel, Diesel-Electric and Electric Locomotives My Archive Steam Photos from the 1960s *

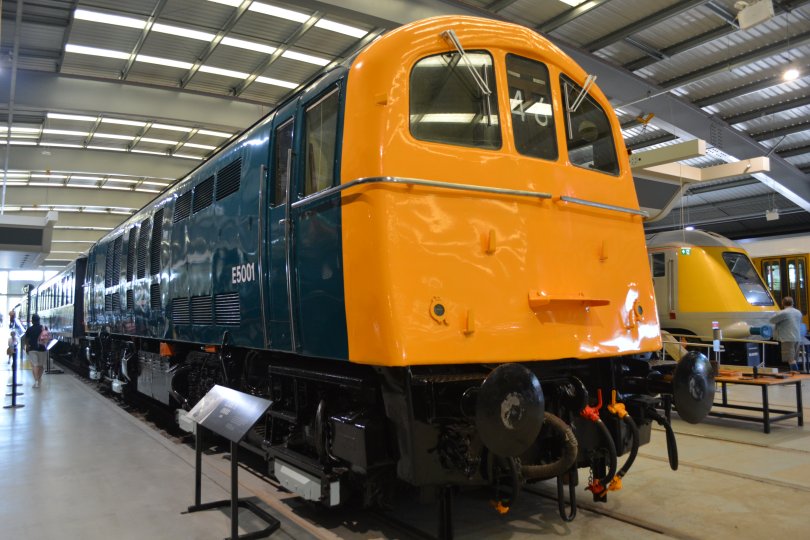

Now in British Rail blue livery, Class 71 electric locomotive E5001 in Shildon NRM Museum, 2024

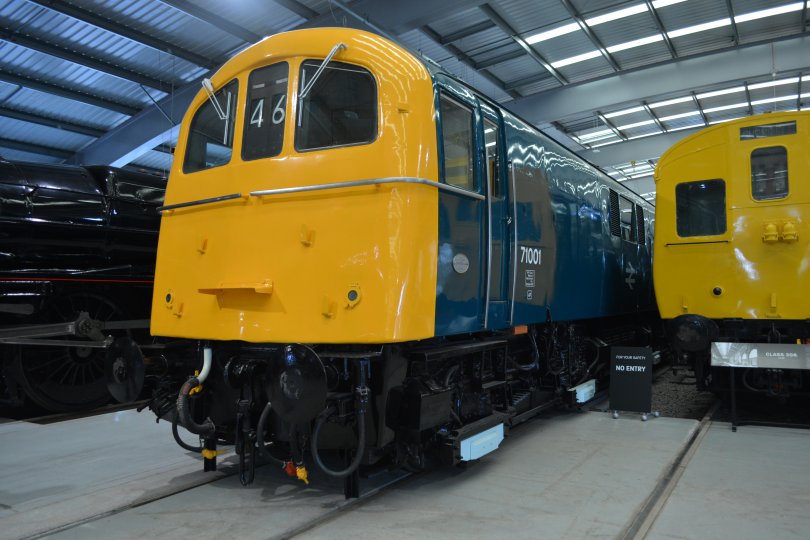

British Railways BR Class 71 Bo-Bo electric locomotive E5001 in British Railways Green livery (E 5001, 71001, 71 001) built at Doncaster in 1959. The Class 71's were designed for the Kent electrification scheme to haul freight and express passenger trains including the famous 'Golden Arrow' and 'Night Ferry' passenger boat trains to Dover. Photographed in Shildon NRM. A History of the Class 71 Electric locomotives The Class 71 were a small but powerful fleet of 24 Southern Region electric locomotives built 1958–60 at Doncaster for the Kent Coast electrification, working exclusively from 650–750 V DC third‑rail (with limited overhead DC in yards) and withdrawn by 1977, with ten later rebuilt into the electro‑diesel Class 74. Origins and Purpose of the Class 71 electric locomotivesThe Class 71 (originally Southern Region Type HA) were ordered under the 1955 Modernisation Plan to provide high‑power electric traction for the newly electrified Kent Coast main lines. All 24 locomotives were built at BR Doncaster Works between 1958 and 1960, numbered E5000–E5023, though E5000 was renumbered E5024 in 1962. They were designed for fast freight and heavy prestige passenger work, including the Golden Arrow and Night Ferry, where their high power and rapid acceleration were valuable. Power Collection and Electrical SystemClass 71s were unusual in combining:
They also used a flywheel booster system, derived from earlier Southern Railway designs, to maintain continuity of power over short gaps in the third rail. Technical Characteristics of the Class 71 electric locomotives
The locomotives were built on load‑bearing underframes, with bodywork not intended to take structural stresses, and used 4 ft spoked wheels with a long bogie wheelbase. Operations and Service Life of the Class 71 electric locomotivesClass 71s entered service from 1959, working:
They performed reliably and had low maintenance costs, but their dependence on continuous electrification limited flexibility—especially once the Class 73 electro‑diesels entered service, which could operate anywhere. This competition reduced the Class 71’s usefulness. Rebuilds and Conversions of the Class 71 electric locomotivesThe most significant change in the class’s history was the conversion of ten locomotives into the Class 74 electro‑diesels in 1967–68. These rebuilds added diesel engines, high‑level jumper cables (“bagpipes”), and extensive electrical changes. The Class 74s, however, proved less reliable than the original Class 71s. Withdrawal of the Class 71 electric locomotivesDeclining Southern Region freight, the arrival of more versatile electro‑diesels, and rationalisation of electric locomotive fleets led to:
Preservation of the Class 71 electric locomotivesOnly one locomotive, E5001, survives. It is part of the National Railway Museum collection and has appeared at events such as Railfest and displays at Waterloo and Stewarts Lane. Summary Table of the Class 71 electric locomotives
