Steam Locomotive

BR 34101 HARTLAND

SR Classes WC & BB Bullied 4-6-2 Pacific design

Rebuilt West Country &  Battle of Britain loco

Heritage & Preserved Steam Locomotive Engines

My Archive Steam Photos from the 1960s

Steam locomotive 34101 HARTLAND was built in 1950 with air smoothed casing of one of only six built at Eastleigh Works, but was rebuilt by Jarvis in 1960 at Eastleigh Works. It is currently being rebuilt and hopefully restored to full working order at NYMR's Grosmont workshops on the North Yorkshire Moors Railway. 34101 is the only surviving member of the West Country Class built at Eastleigh.

Technical detail specifications of locomotive 34101: Boiler pressure of 34101: 250 lbf/sq.in., Weight of 34101: loco 86.0 tons, tender ~42-48 tons, Wheel diameter of 34101: 3' 1'', 6' 2", 3' 1", Valve gear of 34101: Walschaerts, Cylinders (diameter x stroke) of 34101: 16⅜" x 24" (3), Tractive effort of 34101: 27720 lbf., BR Power classification of 34101: Class 7P

Bullied SR 4-6-2 pacific design, (34101 HARTLAND originally built with air smoothed casing, removed in rebuilding), thermic syphons and Boxpox driving wheels.

West Country Class steam locomotive 34101 in earlier days (year ?), working on the North Yorkshire Moor Railway.

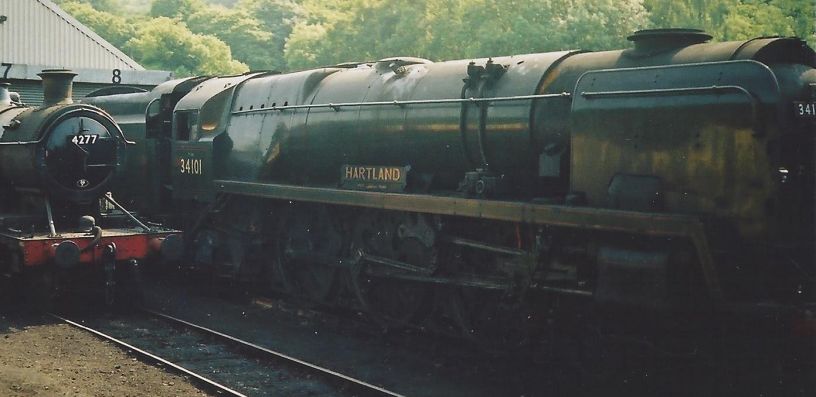

34101 with 5277 (year ?)

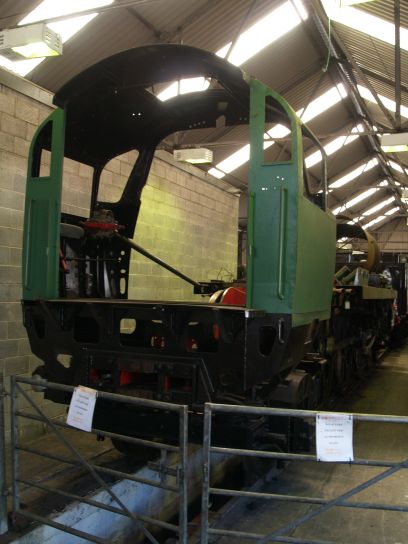

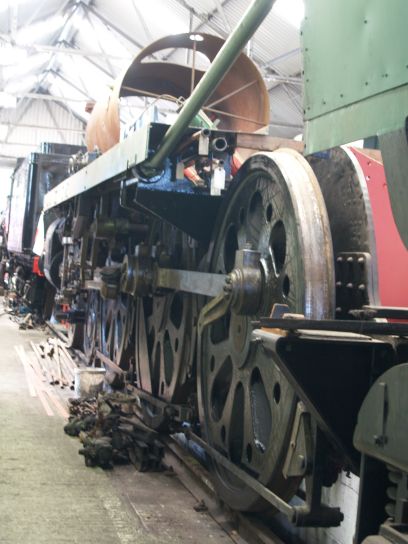

The driving wheels, main frame and cab of 34101 HARTLAND, North Yorkshire Moors Railway, Grosmont workshop-shed in May 2014

The frame of 34101 in May 2016 (above), 01/02/2017 (below)

Rebuilt WC & BB locomotives at Basingstoke in the last days of steam on the Southern Region of British Railways in July 1967. 34101 HARTLAND will look like these eventually, but a lot cleaner and better looked after hopefully!
