British Railways Steam Locomotive 75069

BR Standard 4-6-0 Class 4MT

Heritage & Preserved Steam Locomotives

My Archive Steam Photos from the 1960s

[Author © Dr WP Brown PhD (plus 'DocsPics' help from AI these days), page updated September 4th 2025]

BR 4-6-0 standard loco 75069 built at Swindon 1951, to a BR standard design by R. A. Riddles for mixed traffic work on British Railways.

Technical detail specifications of locomotive 75069: Boiler pressure of 75069: 225 lbf/sq.in. superheated, Weight of 75069: loco 67.9 tons, tender 42.2 tons, Wheel diameter of 75069: 3' 0'', 5' 8", Valve gear of 75069: Walschaerts piston valves, Cylinders (diameter x stroke) of 75069: 18" x 28" (O), Tractive effort of 75069: 25520 lbf., BR Power classification of 75069: Class 4MT, Route availability RA 4. 75069 is fitted with a double chimney.

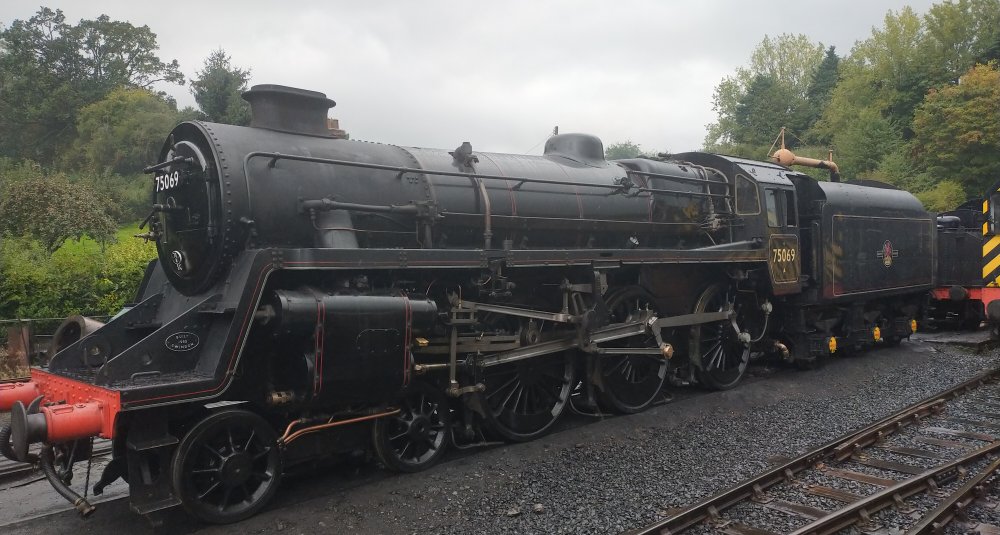

BR standard 4MT mixed traffic 4-6-0 steam locomotive 75069 at the SVR Autumn Steam Gala September 2024 (photo courtesy of Kentish Bob YouTube https://www.youtube.com/@kentishbob6423 )

Here's a detailed breakdown of BR Standard Class 4MT No. 75069

BR Standard Class 4MT No. 75069: Overview

Technical Specifications

Historical Background of 75069

75069 was one of 80 BR Standard Class 4MT 4-6-0 locomotives built between 1951 and 1957. Designed for mixed traffic duties on secondary routes, they were essentially tender versions of the Class 4 2-6-4T and shared characteristics with the GWR Manor class, but built to the universal loading gauge.

Operational History of 75069

• 1955: Entered service at Dover Marine.
• 1960: Fitted with a double chimney at Eastleigh.
• 1960s: Allocated to Stewarts Lane, Nine Elms, and Eastleigh.
• 1966: Withdrawn from service after just 11 years and sent to Barry Scrapyard.

Preservation & Heritage of 75069

• 1971: SVR News announced plans to rescue 75069.
• 1973: Acquired from Barry Scrapyard by the 75069 Fund.
• 1984: Restoration completed (still in undercoat) in time for SVR Enthusiasts Weekend.
• 1984–1994: Regularly operated on the Severn Valley Railway and mainline charters including the Red Dragon and Cambrian routes. Participated in GWR 150 celebrations.
• 1994: Withdrawn due to cracked firebox flange.
• 2013–2018: Underwent a £900,000 overhaul involving 25,000 hours of work.
• 2018–Present: Returned to active service on the SVR.

Liveries and Identification of 75069

• Livery History:
  • Originally carried BR lined black with early crest.
  • Later repainted in BR lined green during preservation.
  • Displayed undercoat grey briefly during 1984 Enthusiasts Weekend.
  • Currently wears BR lined black with late crest.
• Cabside Markings:
  • Features a yellow triangle below the number, indicating Alfloc water treatment equipment used to reduce boiler scale.
• Numbering:
  • Always carried 75069; no known alternative numbers or names.

See also

BR 75029 THE GREEN KNIGHT Locomotive BR Standard 4-6-0 Class 4MT

BR 75078 Locomotive BR Standard 4-6-0 Class 4MT

75069 looks like this after full restoration, stationary or in action!
