GCSE Chemistry Notes: Extraction-purification of copper, phytomining & bioleaching

extract2 extract1

memory help - element quizcopper2

4. The extraction of copper from copper ores & purification by electrolysis

Also, phytomining and bioleaching e.g. of low grade copper ores

Doc Brown's GCSE/IGCSE O Level KS4 science CHEMISTRY Revision Notes on extracting and purifying copper

 Mining of Minerals and Methods of Extracting of Metals

How do we extract copper from its copper carbonate or copper sulphide ores? What are the raw materials for extracting copper? How do we purify impure copper obtained from smelting copper mineral ores? The chemistry of carbon reduction of copper oxides, sulfides or carbonates are described. How can we purify copper by electrolysis? The electrolytic purification of the impure copper is described with the electrode equations. How copper can be extracted from ores by phytomining (phytoextraction) and bioleaching using 'rock eating' bacteria! Scroll down for revision notes on extraction procedures and theory which should prove useful for school/college assignments/projects on ways of extracting metals from their ores. Note: sulphide is now spelt sulfide, sulphate is now sulfate and sulphur is now sulfur

Equation note: The equations are often written three times: (i) word equation, (ii) balanced symbol equation without state symbols, and, (iii) with the state symbols (g), (l), (s) or (aq) to give the complete balanced symbol equation.

 These revision notes on the extraction of copper and the electrolytic refining of copper, should prove useful for the new AQA, Edexcel and OCR GCSE (9–1) chemistry science courses.

Metal extraction index

extract1extract2

1. Introduction to Metal Extraction

2. Extraction of Iron and Steel Making

3. Extraction of Aluminium and Sodium

4. Extraction & Purification of Copper, phytomining & bioleaching (this page)

5. Extraction of Lead, Zinc, Titanium and Chromium

6. Economic & environmental Issues and recycling of various materials

For more on the reactivity series of metals and oxidation-reduction (redox) reaction see

Detailed notes on the 'Reactivity Series of Metals'

Detailed notes on oxidation and reduction and rusting

Detailed notes on metal reactivity series experiments

A summary diagram of important ideas to do with the reactivity series of metals!

Reactivity series of metals - method of metal extraction - relative ease of oxidation reaction with acids

4a. The extraction of copper from copper ores

  • How is copper extracted? how is copper purified? What is the state of copper ore reserves?
  • Copper can be extracted from copper–rich ores by heating the ores in a furnace (smelting) and the copper can be purified by electrolysis.
  • However, the supply of copper–rich (high grade) ores is limited.
  • Copper is extracted from its ores by chemical processes that involve heat or electricity (roasting ores in a smelter–furnace and purification by electrolysis – all the details below).
  • Because of its position in the reactivity series of metals, less reactive copper can be extracted using carbon in a smelting furnace. Copper is well below carbon (less reactive) and so can be displaced by carbon from its compounds eg copper oxides or sulfides. However, in practice, modern copper smelters can actually manage the extraction without using carbon (coke) and then electrolysis is usually used to purify the impure copper from the smelter.
  • The metal copper can be easily extracted BUT copper–rich ores are becoming scarce so new methods of extracting copper are being developed to exploit low grade ores.

    • A low grade ore is one with low concentrations of copper and research is going on to try and exploit waste material left over from processing high grade ores.

  • Copper rich ores are relatively rare, so very valuable, so production costs are quite high.
    • Copper ores are concentrated by a technique known as froth flotation.
    • The ores are roasted to drive off unwanted water and convert them to a more suitable chemical form for reduction to copper metal.
    • After reduction of the ore the liquid copper can be run off from the coke fired copper smelter (furnace).
      • Below are descriptions of the extraction of copper with balanced chemical equations.
      • The balanced equations quoted below, are a simplification of what can be quite complicated chemistry, BUT they do adequately describe and illustrate the chemical processes for extracting copper from its ores.
  • From copper carbonate ores* ...
    • The ore can be roasted to concentrate the copper as its oxide.
    • Water is driven off and the carbonate thermally decomposed.
    • copper(II) carbonate ==> copper oxide + carbon dioxide
    • CuCO3 ==> CuO + CO2   (a thermal decomposition)
      • CuCO3(s) ==> CuO(s) + CO2(g)  (equation with state symbols)
    • The oxide can be smelted by heating with carbon (coke, charcoal) to reduce the oxide to impure copper, though this method isn't really used much these days (the 'bronze age' method archaeologically!).
    • copper(II) oxide + carbon ==> copper + carbon dioxide
    • 2CuO + C ==> 2Cu + CO2     (an oxide reduction reaction, O loss)
      • 2CuO(s) + C(s) ==> 2Cu(s) + CO2(g)   (equation with state symbols)
    • The copper oxide is reduced to copper because of oxygen loss.
    • The carbon acts as the reducing agent – the 'oxygen remover', gains oxygen and gets oxidised.
    • REDOX definition reminders – reduction is a process of oxygen loss (or electron gain) and oxidation is a process of oxygen gain (or electron loss).
  • From copper sulfide ores ...
    • These include chalcocite/chalcosine = copper(I) sulfide Cu2S and covellite = copper(II) sulfide CuS
      • and chalcopyrite CuFeS2. which is one of the most important ores for the extraction of copper.
        • This can be roasted in air to produce copper(I) sulfide which is roasted again in a controlled amount of air so as not to form a copper oxide (see below).
        • 2CuFeS2 +  4O2 ==> Cu2S + 3SO2 + 2FeO
    • Copper sulfide ores can be rapidly roasted in heated air enriched with oxygen to form impure copper and this extraction process is called 'flash smelting'.
      • Nasty sulphur dioxide gas is formed, this must be collected to avoid pollution and can be used to make sulphuric acid to help the economy of the process.
      • copper(I) sulfide + oxygen ==> copper + sulfur dioxide
        • Cu2S + O2 ==> 2Cu + SO2
          • Cu2S(s) + O2(g) ==> 2Cu(s) + SO2(g)  (equation with state symbols)
        • The loss of sulfur from the copper sulfide is still a reduction change.
          • at the same time the sulfur gets oxidised to sulfur dioxide – oxygen gain.
      • or
      • copper(II) sulfide + oxygen ==> copper + sulphur dioxide
        • CuS + O2 ==> Cu + SO2
          • CuS(s) + O2(g) ==> Cu(s) + SO2(g)  (equation with state symbols)
  • It is also possible to dissolve an oxide or carbonate ore in dilute sulphuric acid and extracting copper by ....
    • (1) using electrolysis see purification by electrolysis, or
    • (2) by adding a more reactive metal to displace it e.g. scrap iron or steel is used by adding it to the resulting copper(II) sulfate solution.
      • Using displacement with scrap iron to displace–extract copper from a solution of a copper salt
      • iron + copper(II) sulfate ==> iron(II) sulphate + copper
      • Fe + CuSO4 ==> FeSO4 + Cu
        • iron + copper(II) ion ==> iron(II) ion + copper
        • The fully balanced symbol ionic equation is ...
        • Fe(s) + Cu2+(aq) ==> Fe2+(aq) + Cu(s)
        • Again, to fully understand what is happening, you can think of it as two 'half–reactions'
          • Fe ==> Fe2+ + 2e     (the oxidation half equation, electron loss, iron atom is oxidised)
          • Cu2+ + 2e ==> Cu       (the reduction half equation, electron gain, copper ion is reduced)
          • The electron loss and gain cancel out, so you don't see electrons in the full equation.
          • So, although it seems a very different chemical change from the copper ore reduction ore using
        • Iron (Fe) is the reducing agent (electron donor)  and the copper(II) ion (Cu2+) is the oxidising agent (electron remover or acceptor).
      • Oxidation-reduction theory for this displacement reaction:
  • The copper obtained from the smelting processes described above is too impure to use, so it is purified by electrolysis (details further down the page).


TOP OF PAGE and metal extraction index


4b. The future for copper mining and other sources of metals?

How is copper extracted by phytomining and bioleaching?

  • Introduction to alternative biological methods of extracting metals:

    • Such methods are needed because the Earth’s resources of metal ores are limited.

    • Rich high grade ores will be more rapidly used up than low grade ores, limiting sustainability - unless we find ways of using low grade ores or waste from mining high grade ores.

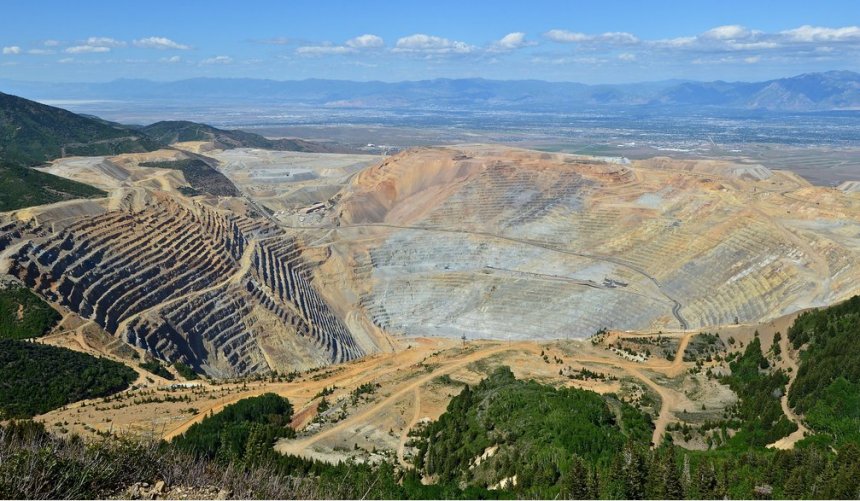

    • Traditional large scale copper mining is damaging to the environment and produces huge amounts of waste, but these methods have less impact on the environment and can make good use of waste containing residual copper, but the processes of bioleaching and phytomining are unfortunately slow.

    • Finite reserves of copper ores are becoming scarce and new ways of extracting copper from low-grade ores include phytomining, and bioleaching.

      • Low grade ores only contain small concentrations of copper and would not normally be considered economic to mine and process, as would waste material from processing high grade copper ores.

    • These two methods avoid traditional mining methods of digging, moving and disposing of large amounts of rock - they make finite copper resources last longer and reduce the impact on the environment.

    • Phytomining uses plants to absorb metal compounds and the plants are then harvested and burned to produce ash that contains a more concentrated raw material of the metal compounds. From this ash the metal can then be extracted.

    • Bioleaching uses bacteria to produce leachate solutions that contain metal compounds. The metal compounds can be processed to obtain the metal e.g. copper can be obtained from solutions of copper compounds by displacement using scrap iron or by electrolysis (experiments, hopefully you will have done).

  • Copper–rich ores are being depleted and traditional mining and extraction have major environmental impacts, so there are important issues involved with the future exploitation of copper ore reserves.

  • Because of these issues, new ways of extracting copper from low–grade ores (eg containing ~1% copper) or waste material from the mining operations, are being researched to limit the environmental impact of traditional mining.

  • For example as mentioned above, copper can be extracted by phytomining, or by bioleaching.

    • Phytomining Phytoextraction ('mining with plants',

      • Extracting copper in this way is a commercial example of phytoextraction.

      • Phytomining uses growing plants in soil to absorb metal compounds.

      • Such plants cannot always get rid of the copper ions and they build up in leaves.

      • These plants naturally absorb copper compounds through their roots as they feed on the nutrients around them and because they can't always get rid of the excess of certain metals like copper, this results in higher concentrations of these copper compounds in the plant tissues e.g. leaves.

      • The plants are then cropped (harvested), dried and burned in a furnace to produce an ash that contains the metal's soluble compounds which can be extracted.

      • The combustion process concentrates the metal in the ash.

      • The bigger the plant and the faster it grows, the greater the yield of metals like copper.

      • The ash is dissolved in hydrochloric acid or sulfuric acid and the copper can be extracted by electrolysis or more cheaply by displacement of the copper with scrap iron. e.g.

      • iron + copper(II) sulfate ==> iron(II) sulfate + copper

      • Fe(s)  +  CuSO4(aq) ===>  FeSO4(aq) +  Cu(s)

      • In this extraction process, the copper metal is precipitated out of the copper sulfate solution, the iron dissolves in the reaction forming iron sulfate solution.

        • In terms of oxidation and reduction the ionic redox equation is:

          • Fe(s)  + Cu2+(aq)  ===>  Fe2+(aq)  +  Cu(s)

        • You should be able to work out the two half equation:

        • iron atoms are oxidised by losing 2 electrons: Fe  ==>  Fe2+  +  2e-

        • copper ions are reduced by gaining 2 electrons: Cu2+  +  2e-  ==> Cu

    • Bioleaching 'bacteria extraction' (bacterial extraction with 'rock eating bacteria'!)

      • Apparently 10% of copper in the US comes from bacteria which live off the surrounding rocks.

      • You can use low grade ores or waste material from the higher ore grade mining operations.

      • Bioleaching uses bacteria (bacterial microorganisms) to produce leachate solutions that contain soluble copper compounds that can be processed to extract the copper.

      • Some bacteria naturally absorb copper compounds as they chemically interact with the surrounding mineral rocks to as an energy source and free the metal from the ore to form copper ions.

      • ie it is a copper leaching effect with respect to the surrounding rock material as they break down ores like chalcopyrite (CuFeS2).

      • From the bacterial discharges you can produce solutions (blue leachates of copper ions), which contain soluble copper compounds in commercially viable concentrations.

      • Again, the copper can be extracted by electrolysis or more cheaply by displacement of the copper with scrap iron - as described in phytomining above.

        • In electrolysis, the copper ions are reduced and deposited on a negative copper cathode electrode.

        • Cu2+(aq)  +  2e-  ===> Cu(s)

    • Advantages and disadvantages of phytomining and bioleaching to extract copper

      • Neither phytomining or bioleaching is fast so it isn't always economical to use this slow technique for extracting copper.

      • In phytomining the plants are slow to grow and in bioleaching the biochemistry is relatively slow.

      • Less energy is needed - smaller carbon footprint.

      • There is less damage to the environment - lower impact as low grade ores/waste does not have to be mined in the same way - wildlife habitats are less affected.

      • These methods might be useful in developing countries where the huge capital investment required to build complex smelting furnaces would not be available.

  • 'Advanced' technical notes on bioleaching

    • The microorganisms essentially catalyses processes that occurs naturally eg the copper sulphide minerals like chalcopyrite (CuFeS2) are oxidised to a solution of copper(II) Cu2+, iron(II)/(III) Fe2+/Fe3+ and sulfate ions SO42–.

    • The optimum conditions for these bacteria is pH 2–3 and 20oC to 55oC. These bacteria occur naturally so it is possible to spray dilute acid on low grade ores, OR, spray the dilute acid onto waste material from the mining process to try to get any remaining copper from copper bearing rocks.

    • The aerated acidified water slowly percolates through the pieces of broken rock and the colonies of the useful bacteria establish themselves quite naturally in this acidic environment.

    • The bacterial leachings are dilute and impure but, after filtration, the copper can be recovered, usually by displacement with cheap scrap iron.

  • The supply of copper–rich ores is limited so it is important to recycle as much copper as possible especially as demand for copper is growing as the economies of African countries, India, China and Brazil etc.

  • These rapidly developing and becoming increasingly industrialised countries will experience increased consumer demands for all the e.g. electrical products that we in the West take for granted.

TOP OF PAGE and metal extraction index

4C. Purification of Copper by Electrolysis (extraction from ore above)

(c) doc b

  • The impure copper from a smelter is cast into a block to form the positive anode. The cathode is made of previously purified copper. These are dipped into an electrolyte of copper(II) sulphate solution.
  • When the d.c electrical current is passed through the solution electrolysis takes place.  The copper anode dissolves forming blue copper(II) ions Cu2+.
  • These positive ions are attracted to the negative cathode and become copper atoms. The mass of copper dissolving at the anode exactly equals the mass of copper deposited on the cathode. The concentration of the copper(II) sulphate remains constant.
  • Any impurities present in the impure copper anode fall to the bottom of the electrolysis cell tank. This 'anode sludge' is not completely mineral waste, it can contain valuable metals such as silver. If these valuable metals can be recovered, their sale would help the economics of the process.
  • See section above for extraction of impure copper from an ore.

Raw materials for the electrolysis process:

  • Impure copper from a copper smelter.

  • Electrolyte of aqueous copper(II) sulphate.

  • A pure copper cathode.

Electrolysis is using d.c. electrical energy to bring about chemical changes at the electrolyte connections called the anode and cathode  electrodes.

An electrolyte is a conducting melt or solution of ions which carry the electric charge as part of the circuit.

Scrap copper can be recycled and purified this way too ,and is cheaper than starting from copper ore AND saves valuable mineral resources.

The redox details of the electrode processes:
  • Electrolysis reminders – the negative electrode (–) is called the cathode and attracts positive ions or cations e.g. Cu2+, and the positive electrode (+) is called the anode and attracts negative ions or anions. However in this case, the copper anode actually dissolves.
  • Read the following in conjunction with the 'concept diagram' for the electrolysis of copper sulfate solution with copper electrodes, after the electrode equations.
  • At the positive (+) anode, the process is an oxidation, electron loss from copper atoms, as the copper atoms of the positive anode electrode dissolve to form blue copper(II) ions.

copper atoms ==> copper ions + electrons

oxidation half equation

Cu ==> Cu2+ + 2e   (an oxidation, electron loss)

Cu(s) ==> Cu2+(aq) + 2e

  • The negative () cathode attracts the positive copper ions, this electrode process is a reduction, electron gain by the attracted copper(II) ions to form neutral copper atoms which become coated on the negative cathode electrode.

reduction half equation

copper ions + electrons ==> copper atoms

Cu2+ + 2e ==> Cu   (a reduction, electron gain)

Cu2+(aq) + 2e ==> Cu(s)

Concept diagram for the purification of copper by electrolysis of copper salts solution with copper electrodes

ELECTROCHEMISTRY INDEX:  1. INTRODUCTION to electrolysis – electrolytes, non–electrolytes, electrode equations   2. Electrolysis of acidified water (dilute sulfuric acid)   3. Electrolysis of sodium chloride solution (brine)   4. Electrolysis of copper(II) sulfate solution and electroplating   5. Electrolysis of molten lead(II) bromide (and other molten compounds)   6. Electrolysis of copper(II) chloride solution   7. Electrolysis of hydrochloric acid   8. Summary of electrode equations and products   9. Summary of electrolysis products from various electrolytes   10. Simple cells (batteries)   11. Fuel Cells   12. The extraction of aluminium from purified molten bauxite ore   13. Anodising aluminium to thicken and strengthen the protective oxide layer   14. The extraction of sodium from molten sodium chloride using the 'Down's Cell'   15. The purification of copper by electrolysis   16. The purification of zinc by electrolysis   17. Electroplating coating conducting surfaces with a metal layer   18. Electrolysis of brine (NaCl) for the production of chlorine, hydrogen & sodium hydroxide 19. Electrolysis calculations

4d. USES OF COPPER

  • (c) doc bCOPPER, Cu
  • Copper has properties that make it useful for electrical wiring and plumbing.
    • Copper is a good conductor of electricity and heat, can be bent but is hard enough to be used to make pipes or tanks and does not react with water.
  • The alloy BRASS is a mixture copper and zinc. It is a much more hard wearing metal than copper (too soft) and zinc (too brittle) but is more malleable than bronze for 'stamping' or 'cutting' it into shape.
  • Copper is used in electrical wiring because it is a good conductor of electricity but for safety it is insulated by using poorly electrical conductors like PVC plastic.
  • Copper is used in domestic hot water pipes because it is relatively unreactive to water and therefore doesn't corrode easily.
  • Copper is used for cooking pans because it is relatively unreactive to water and therefore doesn't corrode easily, readily beaten or pressed into shape but strong enough, it is high melting and a good conductor of heat.
  • Copper is also used as a roof covering and weathers to a green colour as a surface coating of a basic carbonate is formed on corrosion.
  • The alloy BRONZE is a mixture of copper and tin (Sn) and is stronger than copper and just as corrosion resistant, e.g. used for sculptures.
  • Iron and steel are used for boilers because of their good heat conduction properties and high melting point.
  • Copper compounds are used in fungicides and pesticides e.g. a traditional recipe is copper sulphate solution plus lime is used to kill greenfly.
  • Copper is alloyed with nickel to give 'cupro–nickel', an attractive hard wearing 'silvery' metal for coins.
  • Many copper objects/material can be recovered from their previous use and recycled via scrap metal merchants.

See also

GCSE/IGCSE notes on TRANSITION METALS

and

Advanced A Level notes on the 3d BLOCK ELEMENTS (including the 1st transition metal series)



Doc

Brown's

School

Science

Website

TOP OF PAGE and metal extraction index


WHERE NEXT?

Other associated KS4 Science GCSE/IGCSE chemistry web pages on this site


Doc

Brown's

School

Science

Website

keywords formula equations copper extraction purification: CuCO3 ==> CuO + CO2 2CuO + C ==> 2Cu + CO2 CuFeS2 2CuFeS2 + 4O2 ==> Cu2S + 3SO2 + 2FeO Cu2S + O2 ==> 2Cu + SO2 CuS + O2 ==> Cu + SO2 Fe + CuSO4 ==> FeSO4 + Cu displacement Cu ==> Cu2+ + 2e– Cu2+ + 2e– ==> Cu IGCSE revision notes on the extraction and purification of copper KS4 Science revision notes on notes on the extraction and purification of copper GCSE guide notes on notes on the extraction and purification of copper for schools colleges academies science course tutors images pictures diagrams for notes on the extraction and purification of copper science revision notes on notes on the extraction and purification of copper for revising module topics notes to help on understanding of notes on the extraction and purification of copper university courses in science careers in science jobs in the industry laboratory assistant apprenticeships technical internships USA US grade 8 grade 9 grade10 AQA science GCSE notes on notes on the extraction and purification of copper Edexcel science notes on notes on the extraction and purification of copper for OCR 21st century science OCR GCSE Gateway science notes WJEC gcse science CCEA/CEA gcse science explain how copper is extracted from its ores, from which ores do you get copper from?, how do you extract copper from sulfide ores? copper sulfide CuS Cu2S how do you extract copper from carbonate ores? copper carbonate CuCO3 CuO what is phytomining of copper?, what is the phytoextraction of copper? how do you phytomine copper?, how do you phytoextract copper? describe the electrolytic purification of copper cathode anode copper electrodes copper sulfate electrolyte, how is bacterial leaching used to extract copper? how do you extract copper with bacteria? what is bioleaching to extract copper? how is copper refined using electrolysis? how do you reduce copper ores to copper? old names copper sulphide copper sulphate how do you extract copper from chalcopyrite CuFeS2 gcse chemistry revision free detailed notes on extraction & purification of copper to help revise igcse chemistry igcse chemistry revision notes on extraction & purification of copper O level chemistry revision free detailed notes on extraction & purification of copper to help revise gcse chemistry free detailed notes on extraction & purification of copper to help revise O level chemistry free online website to help revise extraction & purification of copper for gcse chemistry  free online website to help revise extraction & purification of copper for igcse chemistry free online website to help revise O level extraction & purification of copper chemistry how to succeed in questions on extraction & purification of copper for gcse chemistry how to succeed at igcse chemistry how to succeed at O level chemistry a good website for free questions on extraction & purification of copper to help to pass gcse chemistry questions on extraction & purification of copper a good website for free help to pass igcse chemistry with revision notes on extraction & purification of copper a good website for free help to pass O level chemistry

TOP OF PAGE and metal extraction index

KS3 BIOLOGY QUIZZES ~US grades 6-8 KS3 CHEMISTRY QUIZZES ~US grades 6-8 KS3 PHYSICS QUIZZES ~US grades 6-8 HOMEPAGE of Doc Brown's Science Website EMAIL Doc Brown's Science Website
GCSE 9-1 BIOLOGY NOTES GCSE 9-1 CHEMISTRY NOTES and QUIZZES GCSE 9-1 PHYSICS NOTES GCSE 9-1 SCIENCES syllabus-specification help links for biology chemistry physics courses IGCSE & O Level SCIENCES syllabus-specification help links for biology chemistry physics courses
Advanced A/AS Level ORGANIC Chemistry Revision Notes US K12 ~grades 11-12 Advanced A/AS Level INORGANIC Chemistry Revision Notes US K12 ~grades 11-12 Advanced A/AS Level PHYSICAL-THEORETICAL Chemistry Revision Notes US K12 ~grades 11-12 Advanced A/AS Level CHEMISTRY syllabus-specificatio HELP LINKS of my site Doc Brown's Travel Pictures
Website content © Dr Phil Brown 2000+. All copyrights reserved on revision notes, images, quizzes, worksheets etc. Copying of website material is NOT permitted. Exam revision summaries & references to science course specifications are unofficial.

 Doc Brown's Chemistry

*

TOP OF PAGE and metal extraction index
